| Display Specifications | |
| Display |

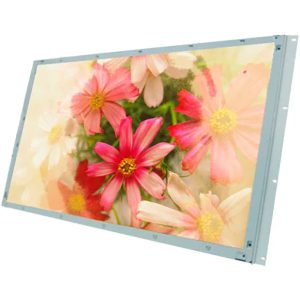

6.5″ Color TFT Open Frame high bright monitor |
|
Model Name |
AXD-06OPN1P1-V1 |
|
Active Display Area (mm) |
132.48 (H)x99.36(V) |
|
Pixel Pitch (mm) |
0.207(H)x0.207(V) |
|
Resolution (Pixel) |
VGA (640X480);16.2Mcolors |
|
Brightness (CD/m^2) |
800/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
140/120 |
|
Power consumption |
6.32 W typical, normal operation |
|
Touch Screen |
Resistive touch screen |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA |
|
Power Input |
DC 12V,4A48W |
|
Mechanical Specifications |
|
|
Construction |
steel chassis & Galvanized Color |
|
Dimensions |
199.5x 150.0x 33.5 (mm) |
|
Mounting |
Edge fixing installation |
|
Power source |
AC 100~240V/ 12V DC-4A |
|
Environment Specifications |
|
|
Operating Temperature |
-20~70℃ |
|
Storage Temperature |
-20~80℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
6.5” LCD Monitor VGA input and power adapter |
