| Display Specifications | |

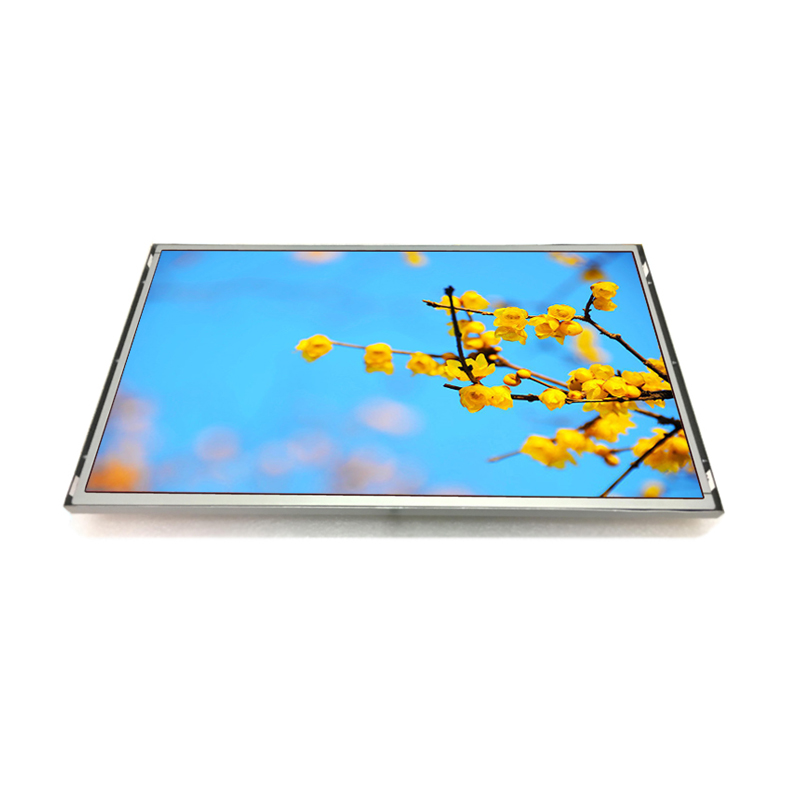

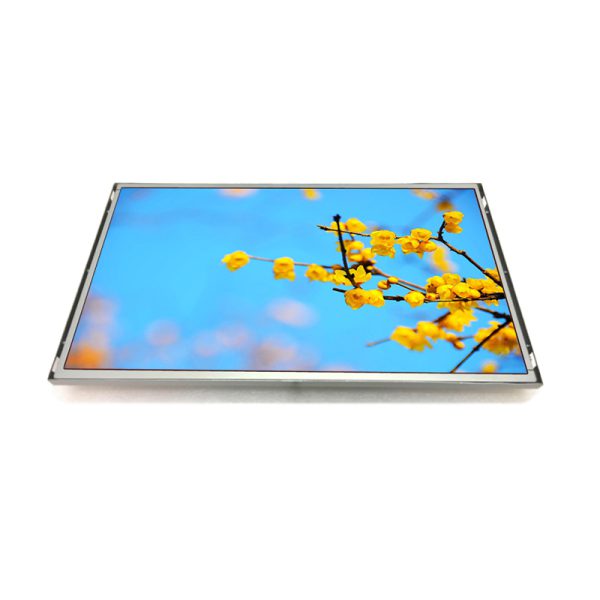

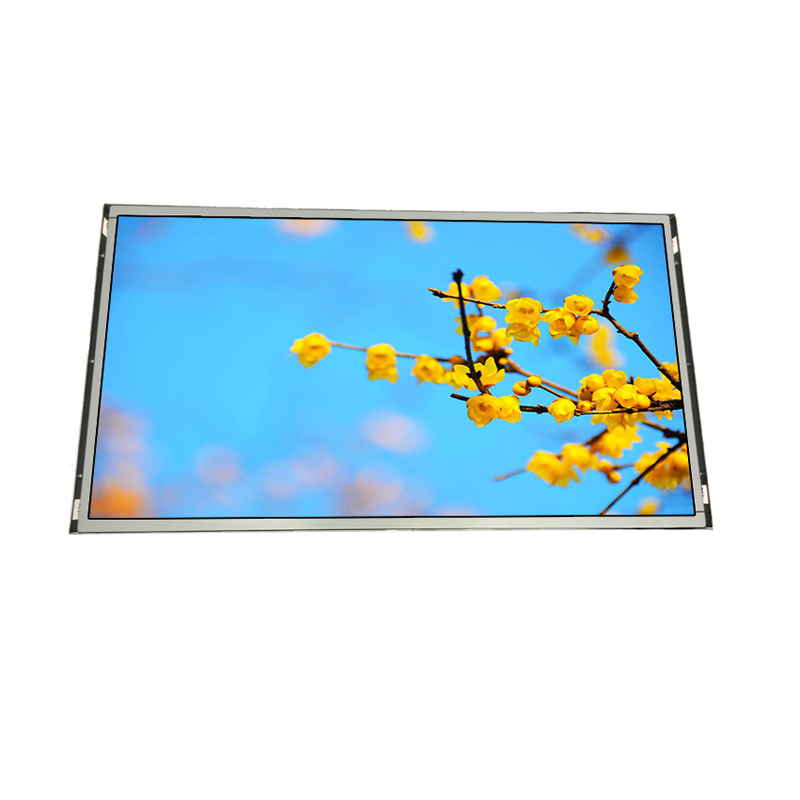

| Display | 21.5″ Color TFT Sunlight readable monitor |
| Model Name | AXD-21OPN1P1-VH3 |
| Active Display Area (mm) | 476.64 (H) x 268.11 (V) |
| Pixel Pitch (mm) | 0.2485 (H) x 0.2485 (V) |
| Resolution (Pixel) | 1920X1080 |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 31.71 W typical, normal operation |
| Touch Screen | NO ;Resistive, capacitive ;IR Touch ;RS232/USB(Optional) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Roasted Metal Frame |
| Dimensions | 528.2x 295.2x 39.0(mm) |
| Mounting | U Left-right fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -5~50℃ |
| Storage Temperature | -20~60℃ |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 21.5” Sunlight readable Monitor 1000nits with full HD |
Packaging & Delivery
| Packing details | 1x 21.5 inch high brightnessLCD Display; Packed in 2 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. 21.5” high brightness New and perfect panels with stable supply
2. industrial control board with wide temperature supports the displays working 24 hours
3. Open frame design to protect the LCD screen

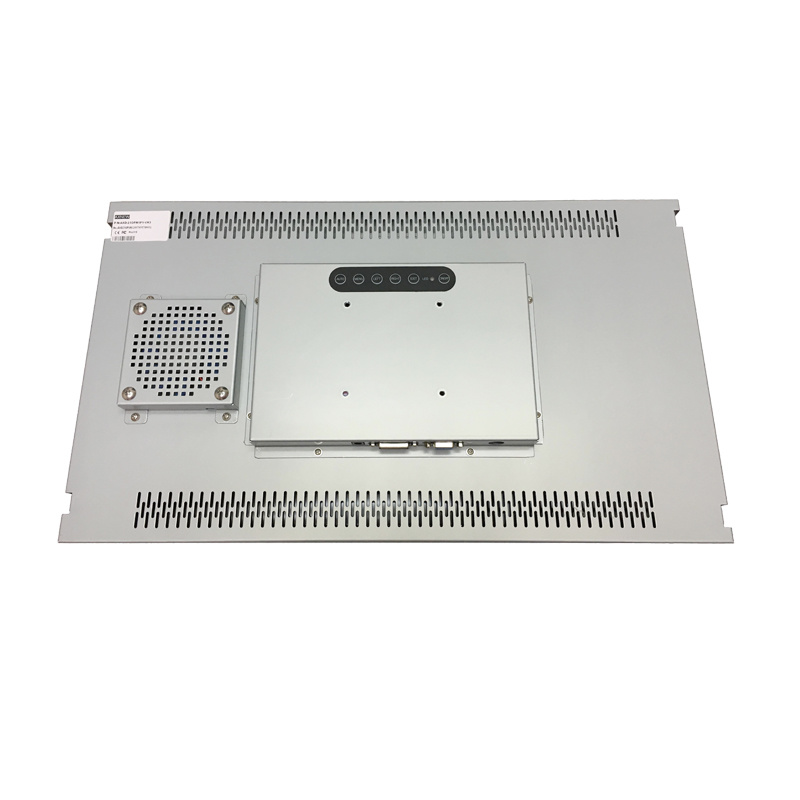

4. Cooling fan on the backside to help heat radiation
5. VGA DVI interfaces ;No touch screen
6. 21.5 inch open frame monitor with high brightness 1000nits for outdoor advertising , outdoor player ,campus and industrial terminals etc
