| Display Specifications | |

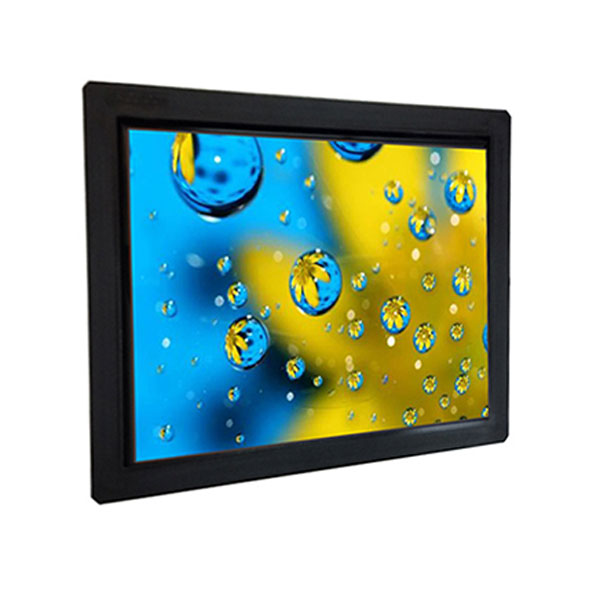

| Display | 10.4″ Color TFT sunlight readable Monitor |
| Model Name | AXD-10OPN1P3-VH4 |
| Active Display Area (mm) | 211.2(H)x158.4(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | VGA (800X600) 16.2M /6 bit + FRC |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 300:1 |
| Viewing Angle (CR >=10) | 140/120 |
| Power consumption | 28 W typical, normal operation |
| Touch Screen | No touch screen, please request if needed |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
