| Display Specifications | |

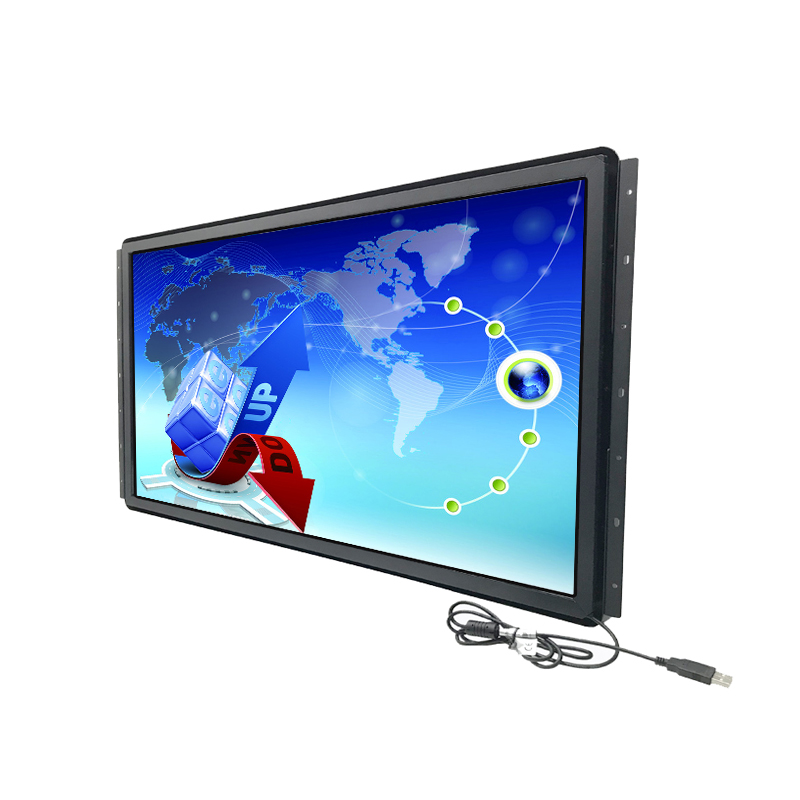

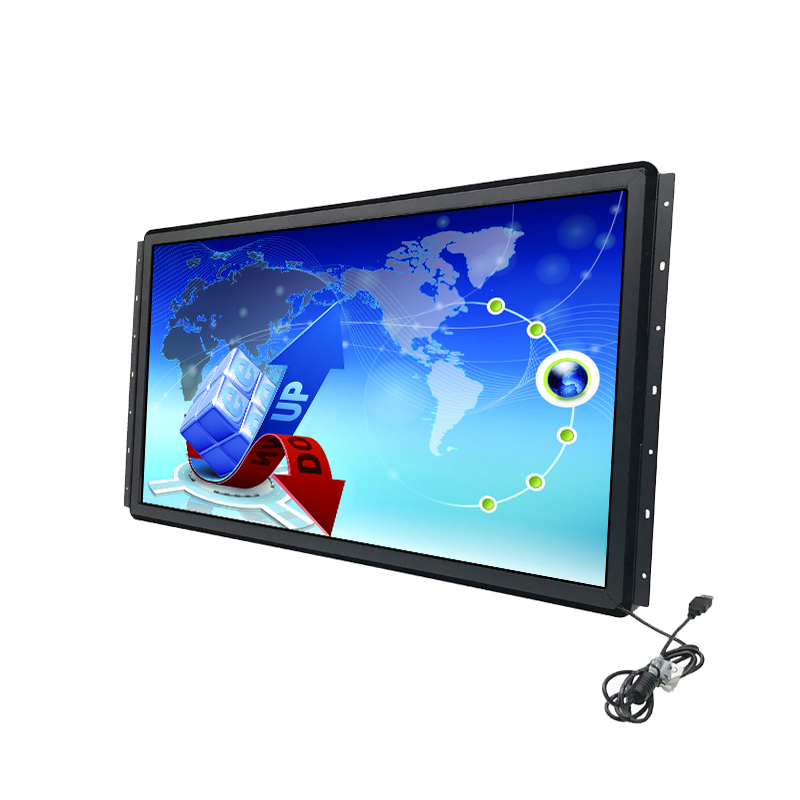

| Display | 32″ Color TFT high brightness IR touch monitor |
| Model Name | AXD-32OPN1P2-TH4 |
| Active Display Area (mm) | 698.4 (H)x392.85(V) |
| Pixel Pitch (mm) | 0.363(H)x0.363(V) |
| Resolution (Pixel) | WSXGA (1920X1080) |
| Brightness (CD/m^2) | 1000cd/m^2 |
| Contrast Ratio | 3000:1 |
| Viewing Angle (CR >=10) | 178/178 |
| Power consumption | 85 W typical, normal operation |
| Touch Screen | Resistive RS232/USB(Optional) |
| OSD Control | On the back side |

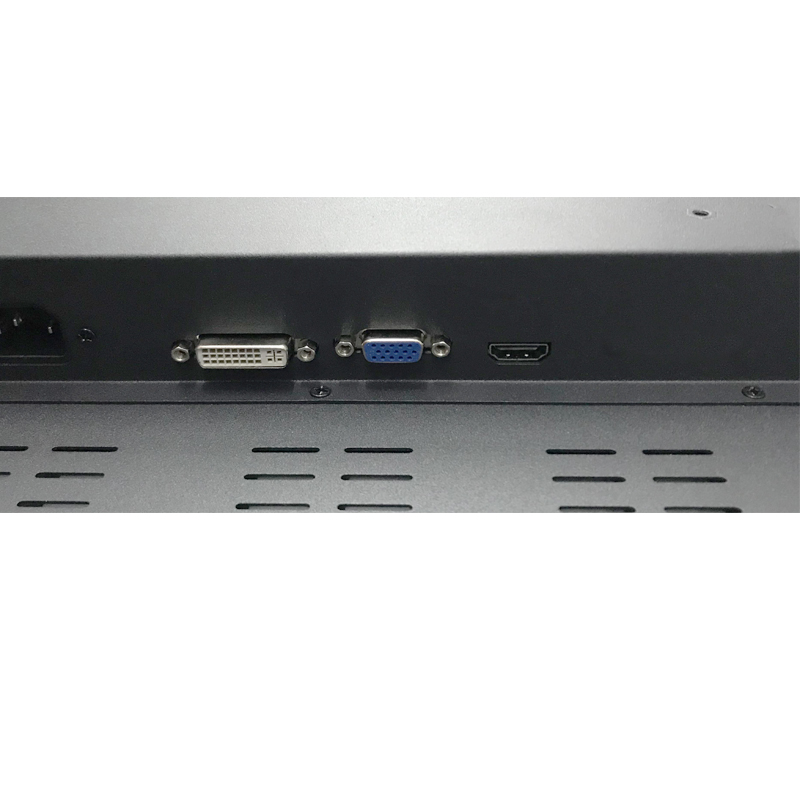

| I/O Connectors | 1x12v,1XVGA,DVI-D(Optional) |
| Power Input Touch Screen options |
220v IR Touch panel |
| Mechanical Specifications | |
| Construction | Steel metal housing |
| Dimensions | 811.0x 450.0x 75.2(mm) |
| Mounting | Embedded ,fixing holes on the |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | 0~60ºC |
| Storage Temperature | -20~60ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 32″ Open frame IR touch LCD HD with 1000nits brightness monitors |
Features and Advantages
1. High Resolution with high contract LCD in stable supply
2. Industrial control board supports the displays working 24 hours
3. 178/178 wide viewing angle with high performance
4. VGA H-dmi ,AV ,Video, YPbPr etc interfaces
5. Integrated solution for touch screen and LCD display; good performance and easy assembling.
6. Interface both for USB and RS232 is available. No further hardware is needed for the convenience of NBSP users.
7. Higher sensitivity and faster response
8. Long durability; 1000nits high brightness LCD panels for this industrial monitor grade

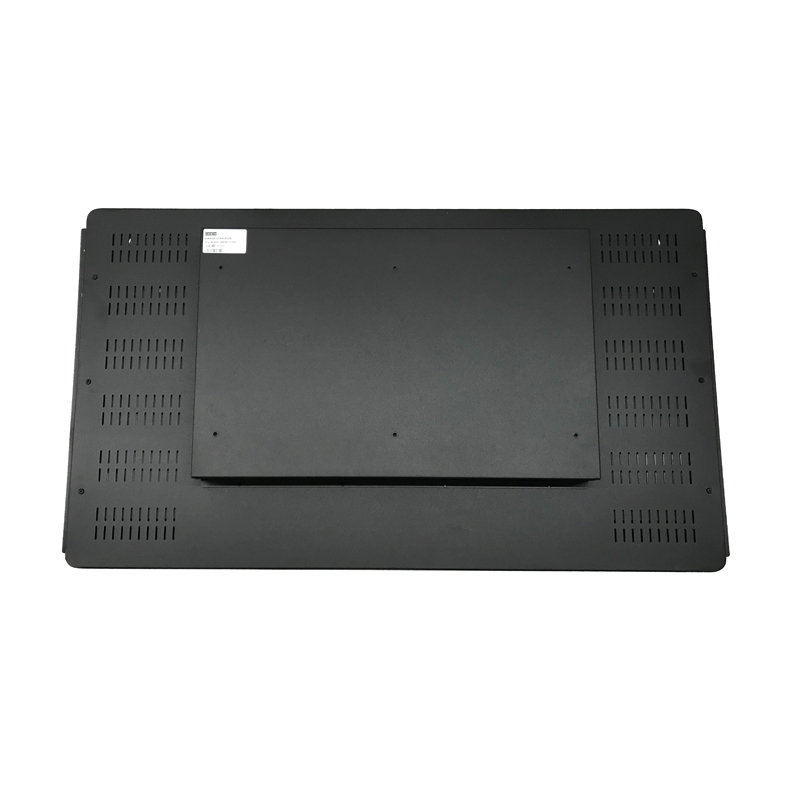

9. Multi-options for assembling, including vertical, horizontal support. You may assemble it in VESA standard solution or in your own design.
10. We also provide the service of producing the product in users’ own design.
Features:
- Versatile Connections: This models can be integrated in different boards with VGA, DVI or HDMI
- Touch innovations : There are ten-point touch capacitive screen ,Infrared touch and one-point single touch such as resistive touch and SAW touch , can be installed in this model , which is easily way to meet any working environment.
- High Brightness options: The Monitors feature a backlight brightness of 600 cd/m² ,800cd/m2 up to 1500cd/m2 and are avaliable from sizes 7 inch, 10 inch, 12 inch, 14 inch,15 inch, 17 inch, 19 inch standard products. Testing devices are BM-7 devices .
