| Display Specifications | |
| Display | 15″ Color TFT industrial open frame display |
| Model Name | AXD-15OPN2P1-VH4 |
| Active Display Area (mm) | 304.1(H)x304.1(V) |
| Pixel Pitch (mm) | 0.297(H)x0.297(V) |
| Resolution (Pixel) | XGA (1024X768) 16.2M Color |
| Brightness (CD/m^2) | 1000nits |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 160/140 |
| Power consumption | 15.3W typical, normal operation |
| Touch Screen | Resistive;RS232/USB(Optional) |
| OSD Control | On the back side |

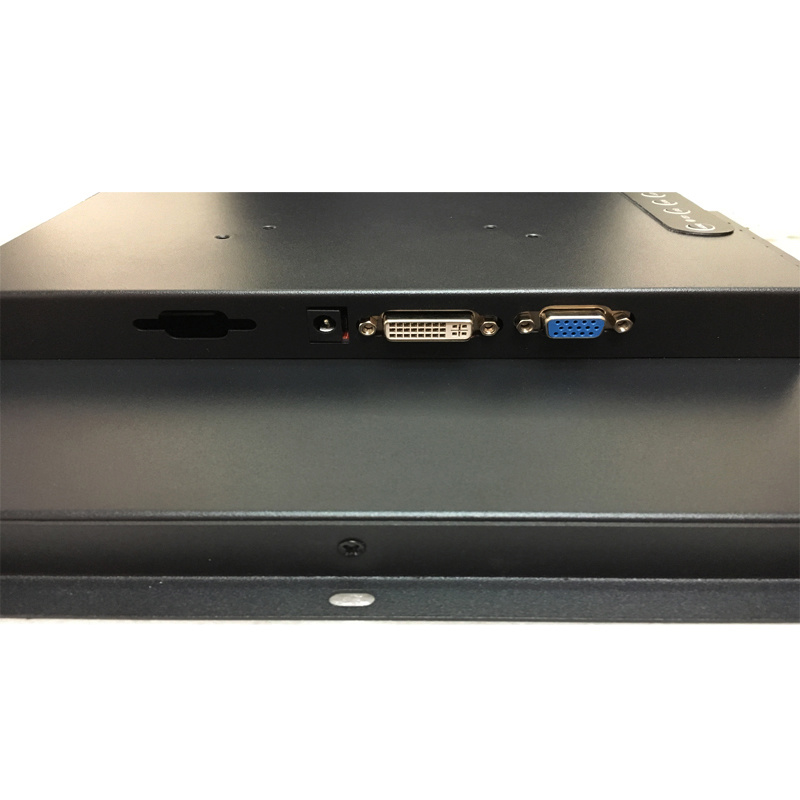

| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Mechanical Specifications | |
| Construction | Steel Metal chassis & Galvanized / Black color |
| Dimensions | 357.3 x 292.0x 42.8 (mm) |
| Mounting | Edge fixing holes |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~85ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15″ industrial open frame high brightness with VGA input |
