| Panel PC information | |
| Model Number | AXD-15PPC-A3 |

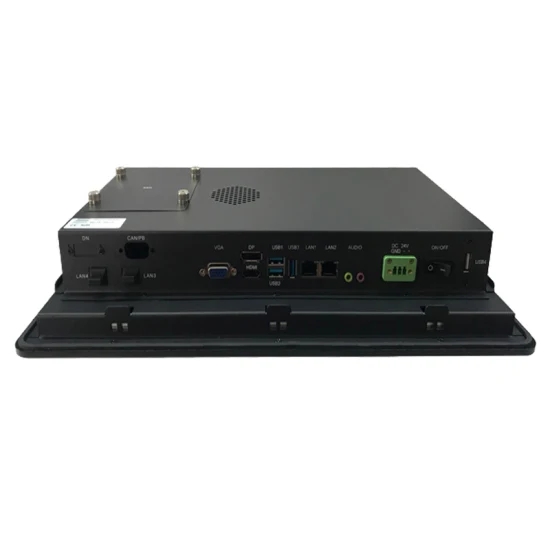

| 15.0” Industrial touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | 5 wire industrial resisitive Flat Screen |
| Touch response time | 8ms (typical) |
| Optimal (native) Resolution | 1024×768 |
| LCD panel Pixel pitch | 0.264 x 0.264 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 500 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 700:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 60°(up), 80°(down) or 160° total |
| CPU | Soldered onboard Intel® I5 3327U 1.8GHz
Processor; DDR3 800MHz SDRAM |
| storage | 64G SSD |
| Serial Ports | 2x COM ports (1x RS-232/422/485 by-pin connector) |
| USB Ports | 4x USB external ports ; 6 six USB internal ports |
| LAN | 1x LAN RJ-45 connector; could be two for options |
| Net | 1 x Realtek RTL8111C Gigabit Ethernet controller |
| DC Power In | 1 x DC Jack 2.5 |
| Video Port | 1 x HDMI |
| Watch Dog Timer | 1~255 levels reset |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 70°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Shock | Operating 16G, 11ms & Non-operating 4G, 20ms (with |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Mechanical dimensions | 376 x 300.0 x 50 mm |
| Weight (Net) | 5.5 kgs/ piece |
| Drawings | Please contact us for details |
Features and Advantages
1. New and A grade lcd panel with other components on stable supply
2. 5 wire Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. Mounting holes on base bottom for tabletop security;Removable base and VESA mounting option
6. 15”resistive Touch pc hardware for industrial terminals, Automatic applications, KIOSKs etc.
