| Panel PC information | |
| Model Number | AXD-17PPC-A1 |

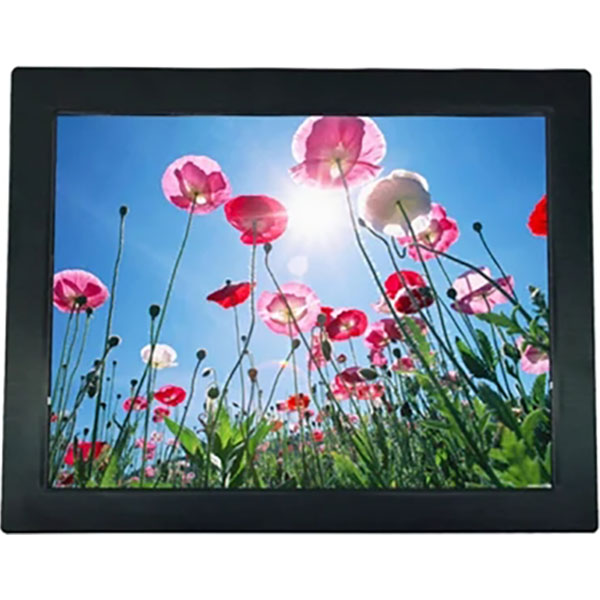

| 17′ Touch panel pc | |
| Case/Bezel Color | Black |
| TFT Type | Industrial LCD with LED backlight |
| Aspect ratio | 4:3 |
| Touch Panel | Industrial 5 wire Resistive Flat Screen |
| Touch response time | 10ms (typical) |
| Optimal (native) Resolution | 1280×1024 |
| LCD panel Pixel pitch | 0.296 x 0.296 mm |
| LCD panel Colors | 16.7 million |
| LCD panel Brightness | 300 cd/m2 |
| LCD panel Response Time | 8ms |
| Contrast Ratio | 800:1 |
| Viewing Angle ( Wide ) | |
| Horizontal (left/right) | ±80° or 160° total |
| Vertical (up/down) | 85°(up), 85°(down) or 170° total |
| CPU | Intel® Celeron 1037U Dual Core 1.86GHz |
| storage | 16 G SSD ( optional) |

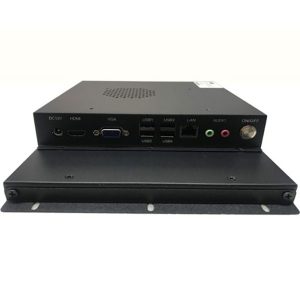

| Serial Ports | 2 x COM ports |
| USB Ports | 4 x USB |
| LAN | 1 x LAN RJ-45 connector |
| DC Power In | 1 x 4-pin connector |
| Video Port | 2X Audio |
| Other Ports | 2x LAN, 1XVGA,1xHDMI,1XLPT |
| Internal Sockets & Connectors | 1 x Compact Flash socket (reserved for OEM project) |
| Power Specification | DC 12V |
| Working Environment | |
| Temperature | Operating: -10°C to 60°C ;Storage -20°C to 65°C |
| Operating Humidity | 5 ~ 90% RH @40°C (non-condensing |
| Vibration | 5 ~ 500Hz, 3Grms Random (with CF/SSD) |
| Dimensions | |
| Mounting Type | Embedded Installation |
| Mechanical dimensions | 386.5 x 318.47 x 57.7 mm |
| Weight (Net) | 7.5 kgs/ piece |
| Drawings | Please contact us for details |
Features and Advantages
1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. Intel® Celeron 1037u Dual Core 1.8GHZ
4. 17 “1280X1024 Resolution Color TFT LCD Display
5. Fully IP54 Compliant Stainless Steel Chassis
6. Supp orts Wide Range DC Power Input (12V)
7. Intel® 16G SSD Compatible
8. Wake-on-LAN functionality for targeted centralized startup via a network
