| Display Specifications | |

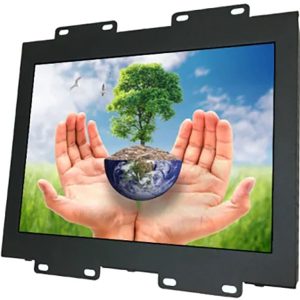

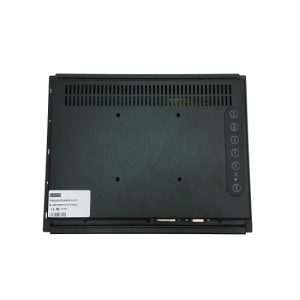

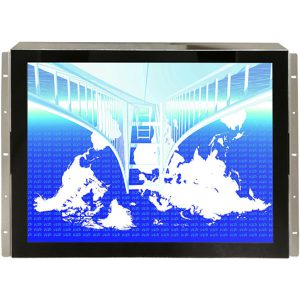

| Display | 10.4″ Color TFT IP65 touchscreen Monitor |
| Model Name | AXD-10OPN1P1-V2C |
| Active Display Area (mm) | 211.2 (H) x 158.4 (V) |
| Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) |
| Resolution (Pixel) | 800X600 |
| Brightness (CD/m^2) | 300cd/m^2 |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 140/120 |
| Power consumption | 6.4 W typical, normal operation |
| Touch Screen | |
| Type | Capacitive touchscreen USB |
| Durability | 50 Million touches(min) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,HDMI |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Steel Frame with rugged powered housing |
| Dimensions | 248.8x 196.0x 42.2(mm) |
| Mounting | VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 10.4″ capacitive IP65 touch monitor with 300nits |
Packaging & Delivery
| Packing details | 1x 10.4 inch capacitive IP65 touch monitor
Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. G104 series New and Industrial perfect panels
2. industrial control board supports the displays working 24 hours
3. Panel mount with rugged frame guarantees its working normally in rough environment
4. VGA HDMI interfaces ; Pcap capacitive touch screen,usb port
6. 10.4 inch industrial touchscreen monitor for application control ,and industrial terminals etc
