| Display Specifications | |

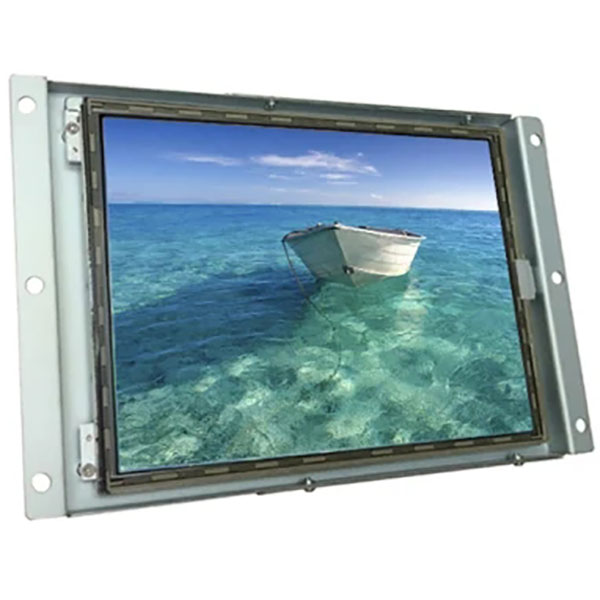

| Display | 10.4″ Color TFT Resistive touch Monitor |
| Model Name | AXD-10OPN1P1-T1(10.4) |
| Active Display Area (mm) | 211.2 (H)x158.4(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Resolution (Pixel) | SVGA (800X600) 16.2M Color |
| Brightness (CD/m^2) | 400cd/m^2 |
| Contrast Ratio | 500:1 |
| Viewing Angle (CR >=10) | 140/120 |
| Power consumption | 8.52W typical, normal operation |
| Touch Screen | Resistive,USB |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | DC 12V,4A 48W |
| Light Sensor Function | Could be supported if you need |
| Mechanical Specifications | |
| Construction | rugged open frame with edge fixings |
| Dimensions | 260 x 215×30 (mm) |
| Mounting | Embedded, edge fixing |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70℃ |
| Storage Temperature | -20~75℃ |
| Rating | Facilitate installation of the demolition,solid portfolio |
