| Display Specifications | |

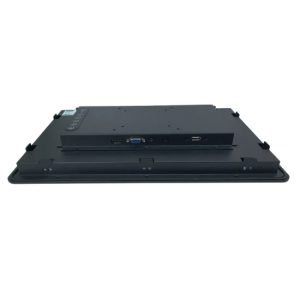

| Display | 15.6″ Color TFT IP65 Touch monitor |
| Model Name | AXD-15OPN2P3-V6C |
| Active Display Area (mm) | 344.16(H)x193.59(V) |
| Pixel Pitch (mm) | 0.1795(H)x0.1795(V) |
| Resolution (Pixel) | 1920×1080 |
| Brightness (CD/m^2) | 400nits |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 170/160 |
| Power consumption | 10.6 W typical, normal operation |
| Touch Screen | Pro-Capacitive touch panel( USB Controller) |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,1xDisplay port, 1xHDMI |
| Power Input | 3 pin connector with 24V converter |
| Mechanical Specifications | |
| Construction | Steel housing & black Color, anti-vandal |
| Dimensions | 397.0x 25270.0×43.0(mm) |
| Mounting | Embedded ,up and down; left-right fixing holes, vesa75x75;100×100 Wall Mounting Optional |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~70ºC |
| Storage Temperature | -30~70ºC |
| Rating | Facilitate installation of the demolition,solid portfolio |
| Ordering Information | 15.6″ LCD with 2mm anti-vandal capacitive touch with display port Input |
Features and Advantages
1. 15.6 inch capacitive touch with flat true design, with IP65 treatment , is new and popular touch technology for Medical industry , Automatic equipments etc
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours, display port , hdmi, DVI signal inputs
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. 8-40v wide voltage could be supported , 24V DC is typical voltage for the monitor.
6. Projection capacitive touch with anti-vandal glass, using eeti chipset witout any interference.
