| Display Specifications | |

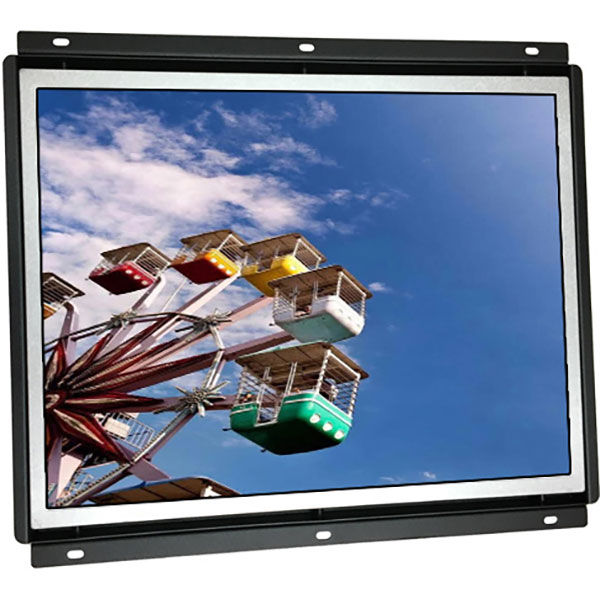

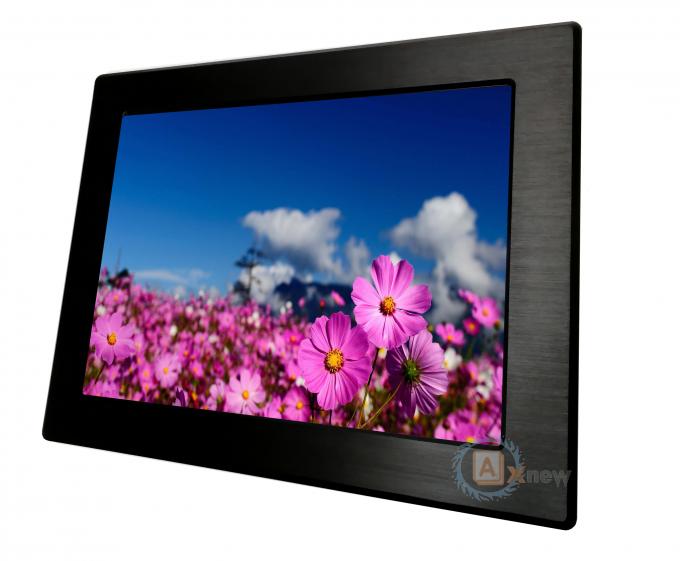

| Display | 15″ Color TFT Panelmount IP65 touchscreen Monitor |
| Model Name | AXD-15OPIPN1P1-V2 |
| Active Display Area (mm) | 305.7(H)x229.7(V) |
| Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
| Resolution (Pixel) | 1024X768 |
| Brightness (CD/m^2) | 500cd/m^2 |
| Contrast Ratio | 800:1 |
| Viewing Angle (CR >=10) | 176/176 |
| Power consumption | 10.3 W typical, normal operation |
| Touch Screen | |
| Type | 5 wire Resistive touchscreen USB |
| Durability | 35 Million touches |
| OSD Control | On the back side |
| I/O Connectors | 1x12v,1XVGA,DVI-D |
| Power Input | AC 100~240V,Universal,±10% ; AC/DC 12V4A |
| Mechanical Specifications | |
| Construction | Aluminum Frame with rugged powered housing |
| Dimensions | 376.1mmx 300.0mmx50.0mm |

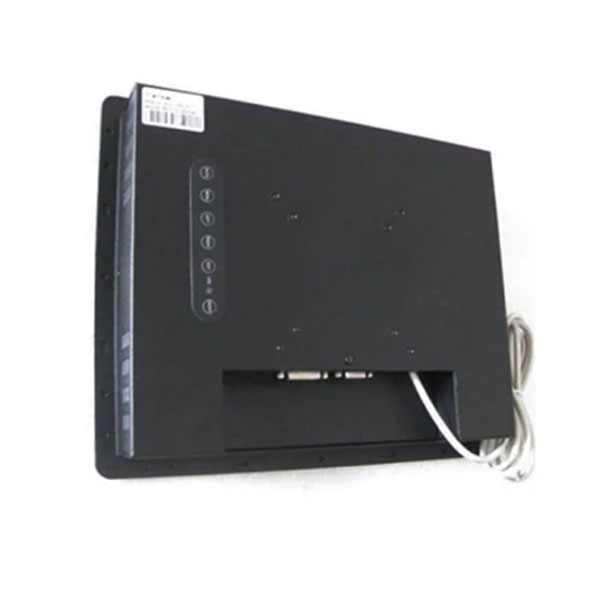

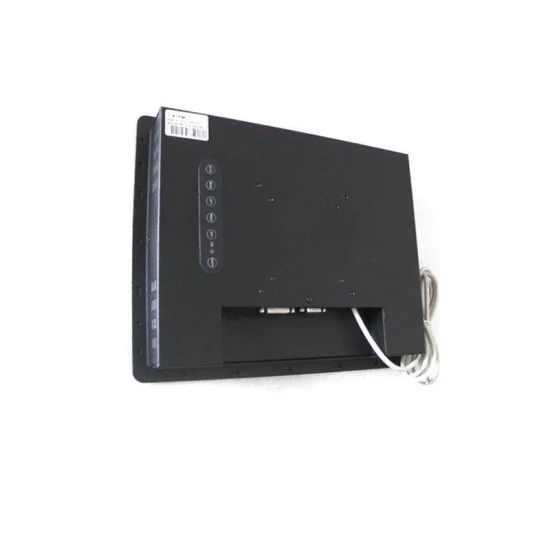

| Mounting | Up-down, Left-right panelmount screws fixing holes ,VESA 75×75(100×100) |
| Power source | AC 100~240V/ 12V DC |
| Environment Specifications | |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~80ºC |
| Rating | Facilitate installation of the demolition, solid portfolio |
| Ordering Information | 15″ panelmount Monitor 500nits with HD VGA input and power adapter |
Packaging & Delivery
| Packing details | 1x 12.1 inch panelmount touchscreen monitor Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
| Delivery terms | 7- working days for stock products after receiving payments; 15 working days for order production |
Features and Advantages
1. G15 New and Industrial A grade perfect panels with 70,000 Hours (min) led backlight life
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4.Rugged panel mount closed industrail design to protect the LCD screen
5. VGA DVI interfaces ;5 wire resistive touch screen,usb port
6. 15 inch industrial touchscreen monitor for application control ,and industrial terminals etc
